Horizontal Injection Three Station Separate Tank Type

LPMS 1000HMG

Horizontal Injection Three Station Separate Tank Type

l Intuitive touch screen operation, which is on the rotary operator.

l Air over oil cylinder gives large clamping force for larger part.

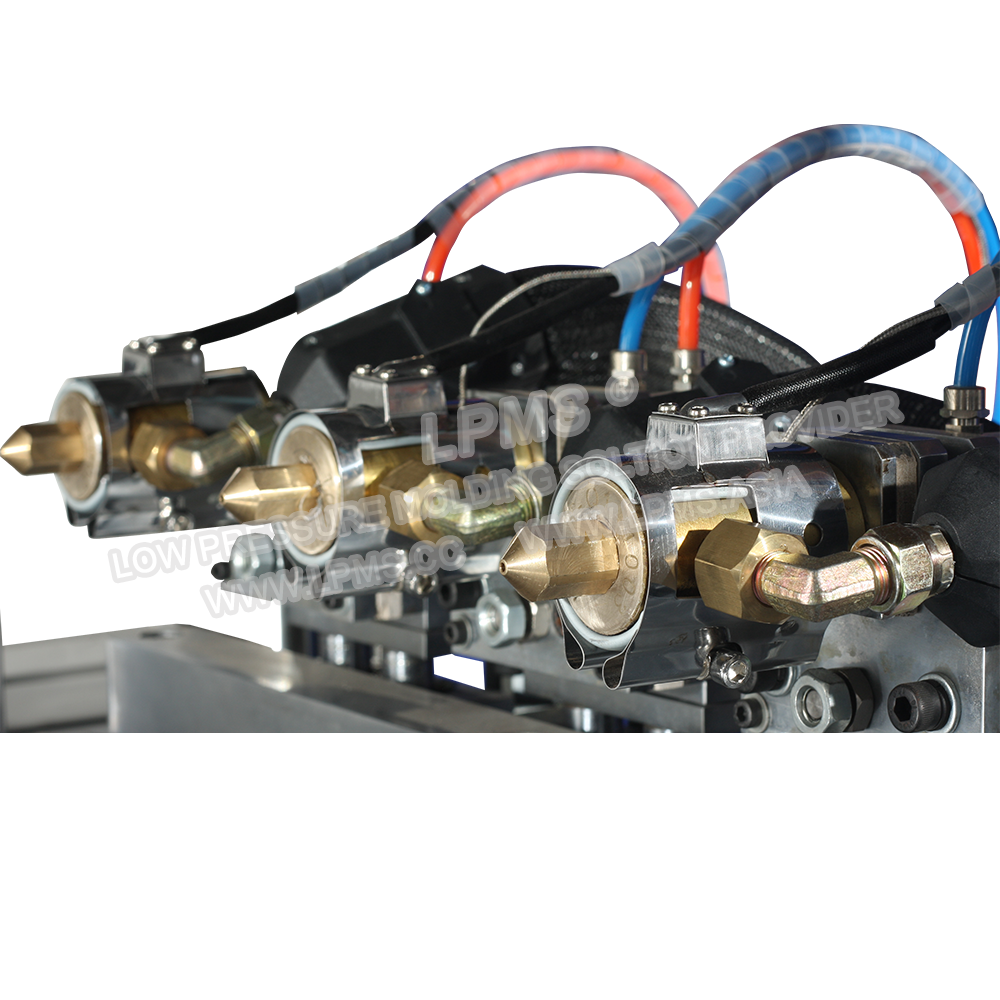

l Two independent injection guns.

l Dual 7 liter melting tanks. Run different molding materials at the same time.

l LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

l The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5g/s.

l Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

l Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.

l Six thermal control zones for precise melt control.

l Light curtain and dual palm buttons for operator safety.

Application

Application scope:

Our machines are engineered for low pressure molding applications using specialty resins to overmold delicate parts. Applications span many industries including: automotive, PCBA，coil,fiber-optic,LED lighting, wire and cable,and electronics.

Specification

Machine Size mm	1120 mm x 1000 mm x 2310 mm / 1200 Kgs 44.09 in x 39.37 in x 90.94 in / 2646 lbs
Work Station Height	860 mm \| 33.86 in
Plant View	2000 mm x2000mm \| 78.74 in
Packing Size	1310 mm x 1150 mm x 2330 mm / 1300 Kgs 51.57 in x 45.28 in x 91.73 in / 2866 lbs
Melting Tank Model &Q'ty¹	LPMS 500B -5 Liter x 2 or more
Auto Feed	Optional
Gun Model & Tip Angle	LPMS-G02 / 36.4°
Heated Hose Model & Q'ty²	LPMS-H16J x 2 or more
Electricity³	200-240VAC / 1Phase / 50 or 60Hz
Temperature Control Zones	6 or more
Temperature Range⁴	Ambient Up To 446℉
Max. Power	9 Kw or more
Min. Air Pressure	0.5 MPa \| 73Psi
Air Consumption	0.1m³ / min \| 3.5ft³ / min
Clamping Device	Air Over Oil Cylinder
Clamping Force	Max.5 Tons or optional 10Tons
Clamping Stroke (mm)	150 mm \| 5.91 in
Control System	PLC+7 in HMI
Safety Protection	Light Curtain
LPMS Standard Mold Set Size	N/A
Max. Mold Set Size	600 mm x 180 mm x 275 mm \| 23.62 in x 70.87 in x 10.83 in
Max. Part Size	500 mm x 70 mm x 10 mm \| 19.69 in x 2.76 in x 0.39 in
