PA hotmelt low pressure molding
PA Hot melt Low Pressure Molding Moldsets

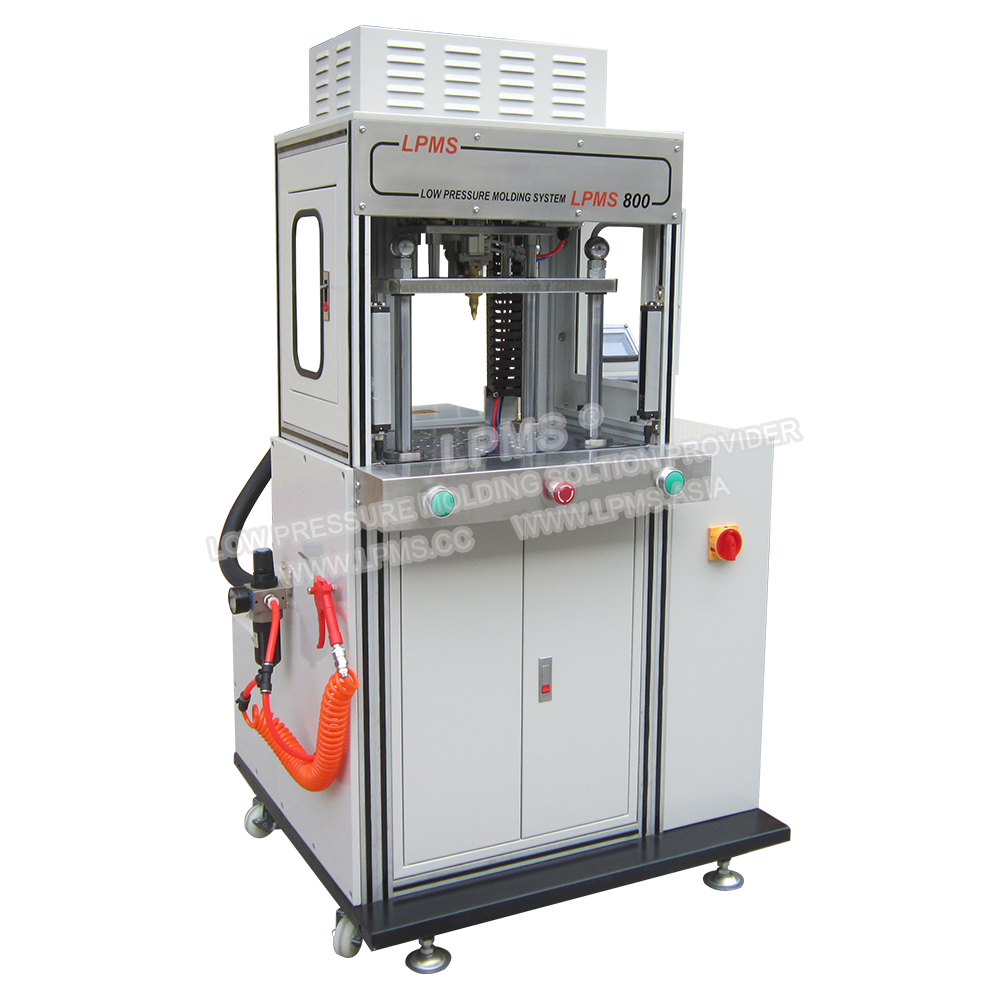

Vertical Injection Single Working Station Compact Machine

LPMS 800

Vertical Injection Single Working Station Compact Machine

  • Intuitive touch screen operation.

  • 7 liter melting tank integrated into machine.

  • LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

  • Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.

  • The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5g/s.

  • Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

  • Three thermal control zones for precise melt control.

  • Over temperature alarming and automatic heating stop functions.

  • Light curtain and dual palm buttons for operator safety.

  • Mechanical ejection system and control for pneumatic ejection.


Application

       LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

       The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.



Specification

Machine Size / Weight

39.8 in x 36.81 in x 65.35 in / 771 lbs

Work Station Height

36.22 in

Packing Size / Weight

43.31 in x 40.55 in x 70.87 in / 882 lbs

Melting Tank

Melt on demand 7 liter x 1

Auto Feeding System

Optional

Maximum shot size

5.8 g / RPM

Gun Model & Tip

LPMS-G08 x 1 / 36.4°

Heated Hose

1.6 m x 1

Electricity

200-240VAC / 1 Phase / 50Hz

Temperature Control Zones

3

Temperature Range

Ambient up to 250°C / 485°F

Max. Power

4.5 Kw

Pump Motor

120 W

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

3.5 ft3/min

Clamping

Air Cylinder

Clamping Force

Max. 1.2 Ton

Clamping Stroke

150 mm  |  5.91 in

Ejector

Air Cylinder

Ejector Force

2515 N

Ejector Stroke

25 mm

Control System

7 ”HMI , PLC controlled

Safety Protection

Light curtain, Emergency stop buttons

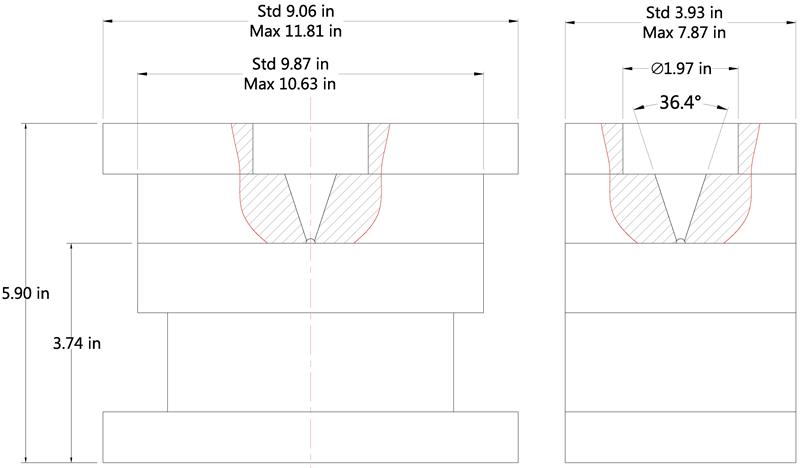

Std. Mold Set Size

9.06 in x 4.72 in x 5.91 in / 55.12 lbs

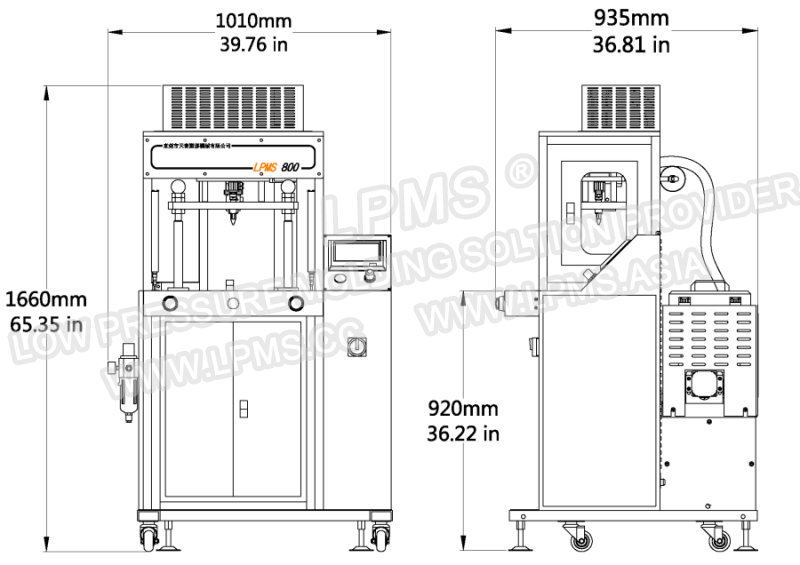

Dimension
