PA hotmelt low pressure molding
Melting Tank
Melt-on-demand 7L tank with thermostat control

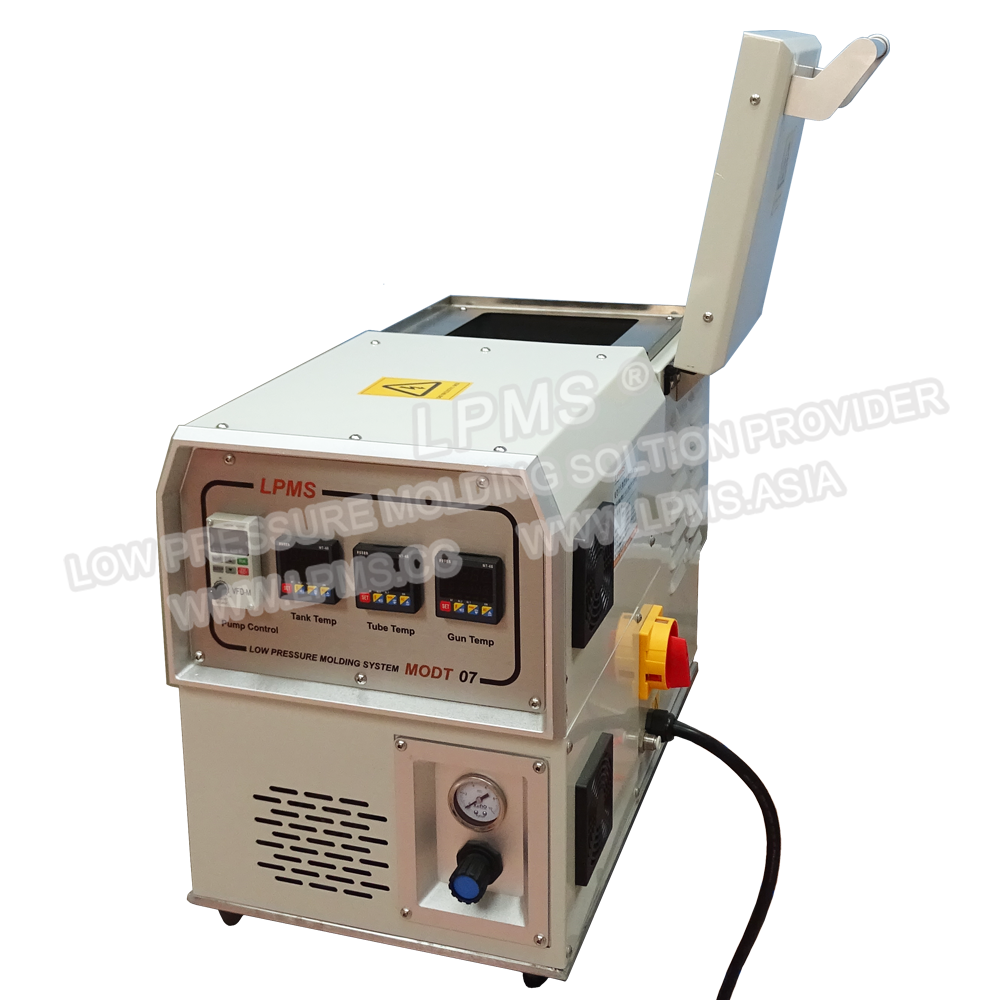

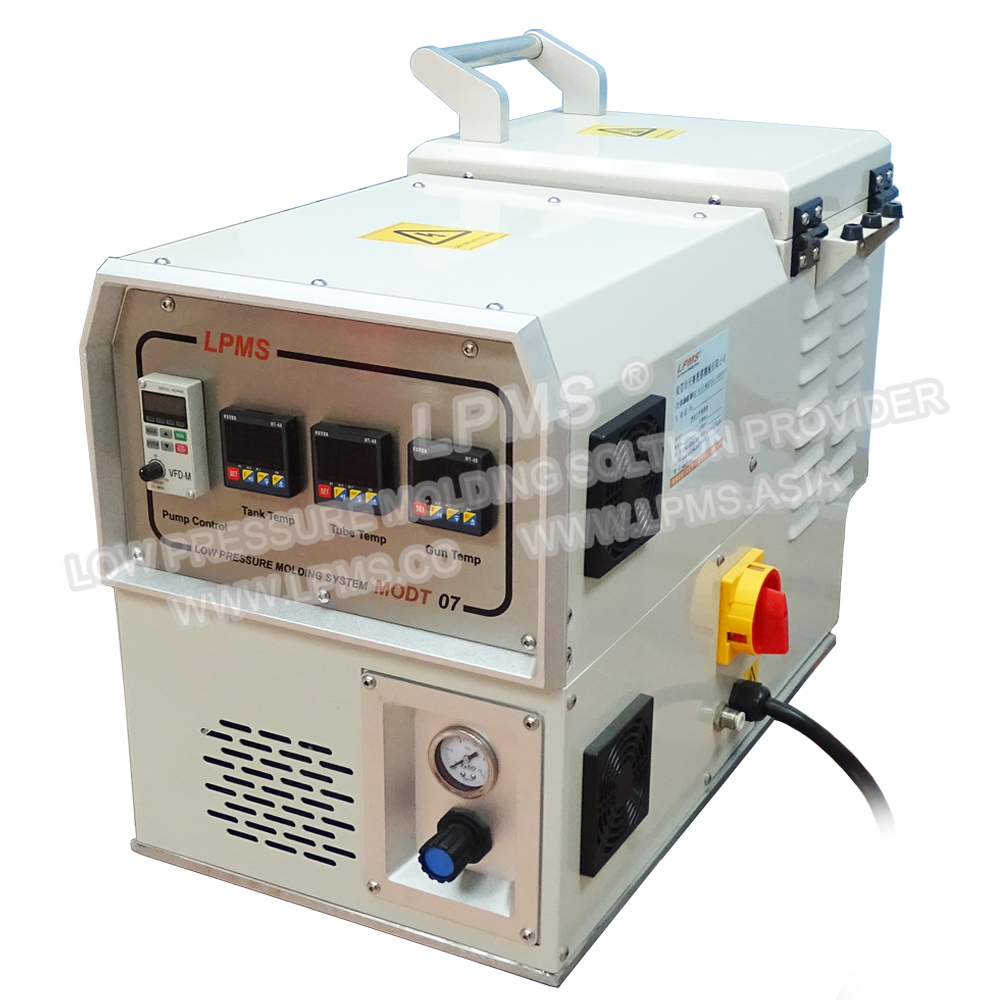

LPMS MODT-07

Melt-on-demand 7L tank with thermostat control

  • Melt-on-Demand Technology helps our resin melt within 25 minutes.

  • temperature controlled by high quality thermostat , temperature control precision

  • Injection system components modular design, compact structure, stable, low failure rate, long life.

  • With machine can be heated actual timing, over-temperature alarm and automatically stop heating.

  • The use of lightweight plastic cylinder made of aluminum alloy with advanced thermal plastic cylinder design, lighter weight, heating uniformity, prevent resin aging.

  • Efficient internal multilayer release Teflon coating, durability is more than 2 times the ordinary Teflon coating.

  • Efficient and reliable easy removable filter.

  • Melter external high-quality insulation materials, insulation factor of up to 0.045W / mk.

  • Temperature accuracy of 0.4%.

  • It can be used with a variety of workstation. Connections by air plugs, easy to operate

Application

   Melting tank is the core of the low-pressure molding. Various types of LPMS workstations can applied to encapsulated products.

      Applications including : automotive electronics, PCBA,coil, fiber-optic, LED lighting, wire, cable, etc.



Specification

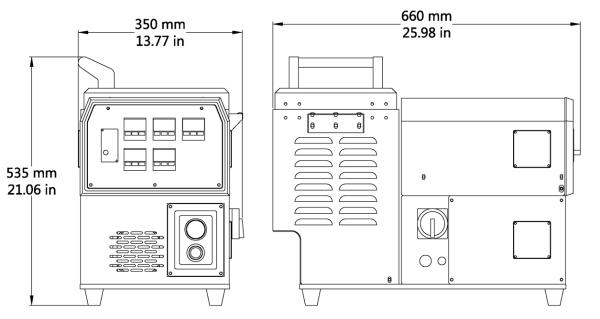

Machine Size

13.77 in x 25.98 in x 21.06 in / 132 lbs

Gun weight

Option

Work Station Height

Option

Plant View

17.71 in x 29.92 in

Packing Size

17.71 in x 29.92 in x 26.96 in / 198 lbs

Melting Tank

MOD 7 Liter

Auto Feed

Option

Gun Model & Tip Angle

Option

Heated Hose

Option, Max 2

Electricity

200~240VAC / 1Phase / 50 HZ

Temperature Control Zones

1

Temperature Range

Ambient up to 250°C / 446°F

Max. Power

4 kw

Min. Air Pressure

0.5 Mpa  |  73 Psi

Air Consumption

1.77 ft3 / min

Clamping Device

Option

Clamping Force

Option

Clamping Stroke

Option

Control System

Thermostat, relay, frequency inverter



Dimension
