Product
CRP welding/handling experts start with welding,
not just welding
not just welding
CRP-RA32-150
FUNCTIONAL FEATURES
The arm span is 3.2 meters, high rigidity,strong load capacity, more stable operation, and the load capacity is 150kg, which is about 15% higher than the previous generation.
Arm motor built-in, simple appearance, suitable for small space operation, more flexible movement.
With high speed, high overload capacity servo motor, high precision RV reducer and the latest anti-vibration control strategy,shorten the pitch operation time.
The installation area of the whole machine is small, which can achieve high density installation and wiring, and multiple collaborative work.
The robot has simple structure, friendly operation interface and easy maintenance.

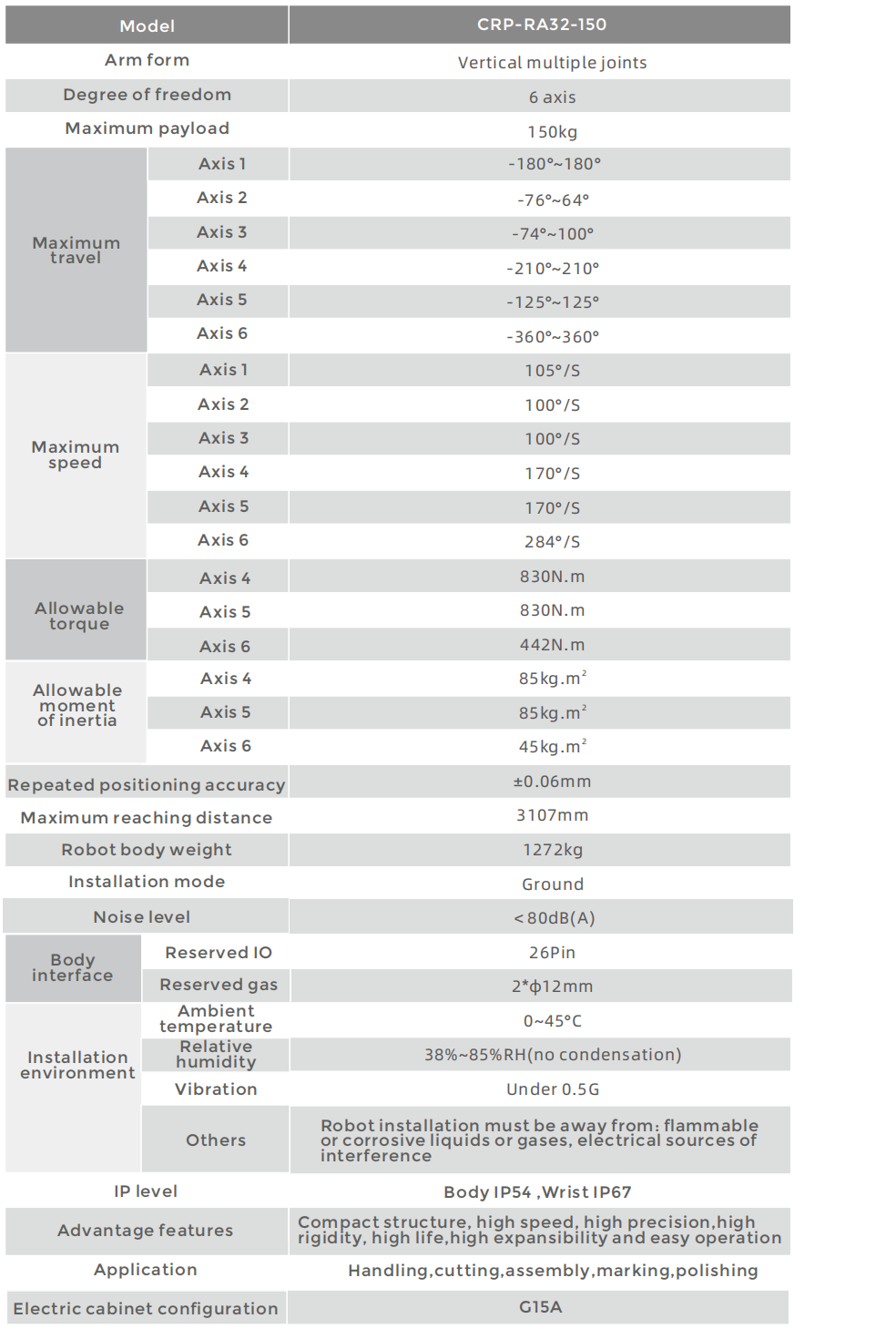

ROBOT BODY TECHNICAL PARAMETERS

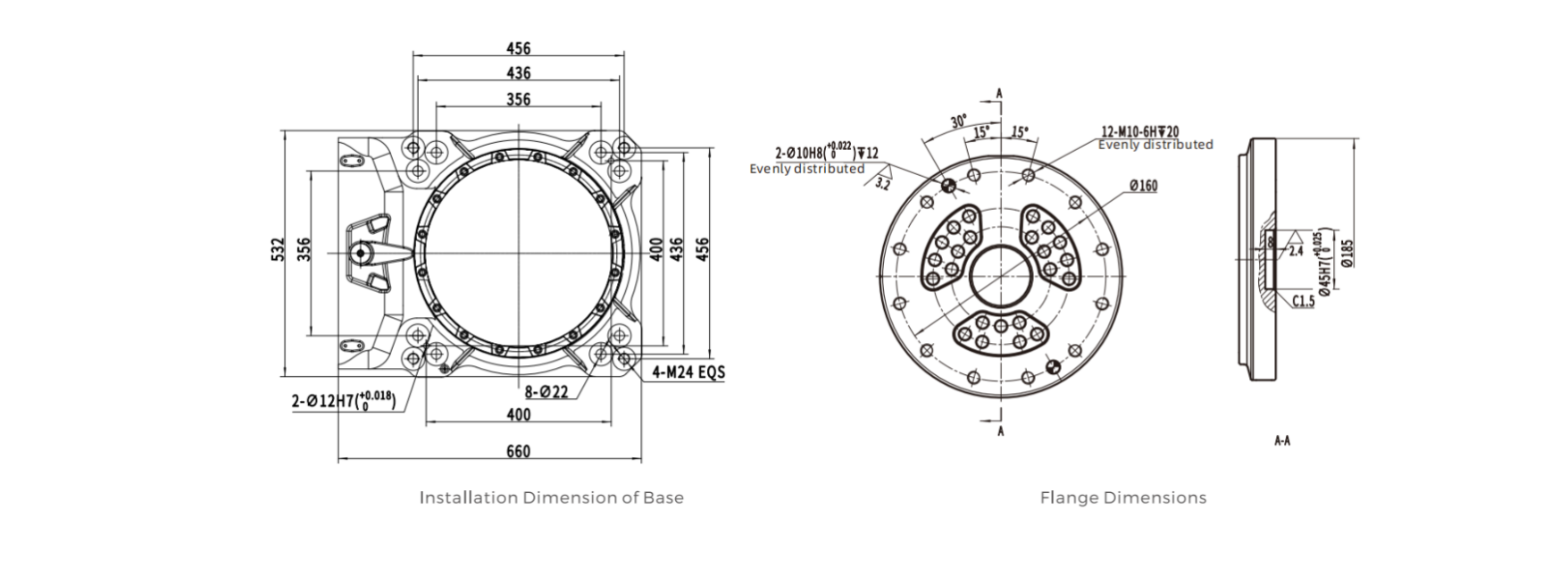

INSTALLATION INTERFACE DIAGRAM
MOTION RANGE DIAGRAM
